HLC Or HLCM

Laser cleaning has non-abrasive and non-contact characteristics, not only can be used to clean organic pollutants, but also can be used to clean the inorganic materials, including metal rust, metal particles, dust, etc. It is easy to install, control and automation, simple operation, switch on electricity, open the device, can be achieved without chemical reagent and medium, clean, no water cleaning, flexible focus, perfect for all kinds of plane, surface, and even within the cavity cleaning, cleaning surface spotlessness, is a new generation of cleaning the surface of supplies and environmental protection high-tech products

เเชร์

ราคา

0

Features

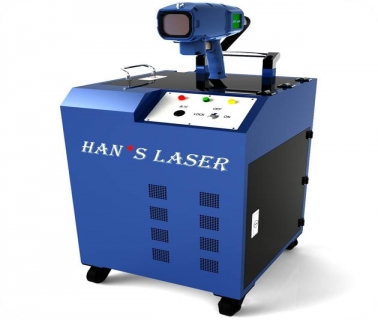

-Mobile small cabinet: compact size, easy to move, air cooling system;

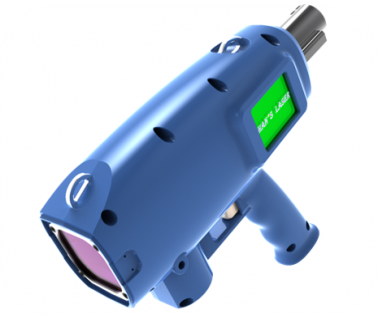

-Hand cleaning Head: adopt the principle of human mechanics principle, the grip is more comfortable and convenient; with small touch screen at side of Head

-Laser source : using the large family to independently develop the MOPA laser, the beam quality is good, 8 kinds of waveforms can be selected, and the cleaning application is more professional. The imported IPG laser can also be selected according to the customer“s needs.

-Uniaxial photoelectric scanning system: the large family has developed and developed the accumulation, advanced stability and excellent scanning precision.

-Long service life: 100,000 hours;

-Sensitive surfaces can be cleaned with precision.

Specifications

Size	510480830
Power	10/20/30/50W
Power Supply	220V 50Hz ≤0.5KW
Width	10-80mm（Optional）
Weight of Head	3.5KG
Total Weight	50KG
Laser Source	HANS	IPG
Wavelength	8	1
Pulse	4-200ns	200ns

Specification Parameters

Categorysหมวดหมู่	Low Power				High Power
Laser type ปรเภท	Hans Fiber				IPG Fiber
Laser power	10W	20W	30W	50W	100W	200W	500W	1000W
Wavelength ความยาวคลื่น	1064nm
Safety Classความปลอดภัย	Ⅳ
Cooling mode โหมดทำความเย็น	Air cooling				Water cooling
Cooling water	—				Deionized water
Water temperatureอุณหภูมิน้ำ	—				19℃
Cleaning Head weightน้ำหนักหัวทำความสะอาด	3.5KG				4.5KG
Total weightน้ำหนักรวม	50KG				100KG
Total powerพลังงานรวม	220AC 50/60Hz
Scan Width ความกว้างแสกน	197mm/295mm（Optional）
Power conception	≤0.1KW	≤0.2KW	≤0.3KW	≤0.5KW	≤1KW	≤2KW	≤5KW	≤10KW
Size	510mm×480mm×830mm Or 510mm×480mm×650mm				1060mm×620mm×1030mm
Scan With	10-80mm（Optional）
Working temperatureอุณหภูมิในการทำงาน	5℃-45℃
Optional accessoriesอุปกรณ์เสริม	Handel/Automation
