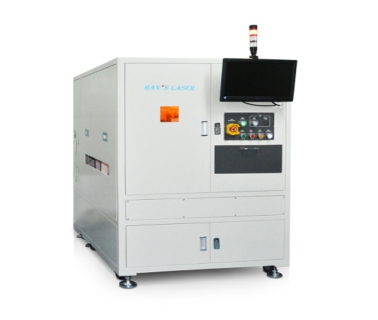

UV Cutting Machine HDZ-CL4030

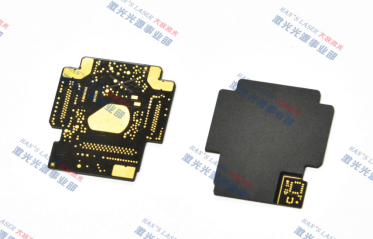

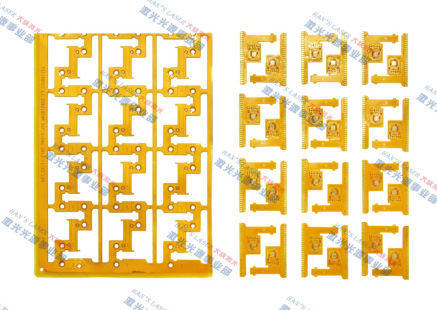

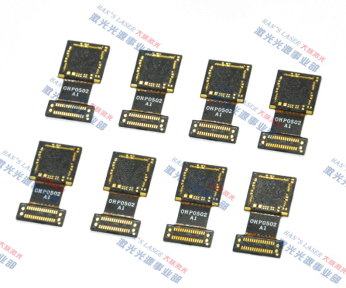

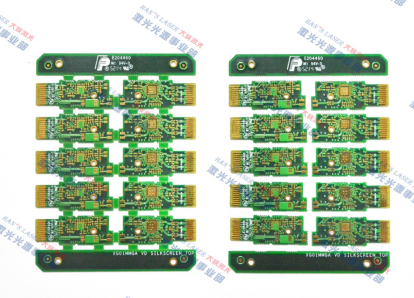

Features : With high-performance UV laser, the laser cuttingheat-affected zone is small and it can more efficiently process the high-density and highly integrated PCB product The self-developed control software has functions ofmultiple jointed board cutting, automatic focusing and distortion compensation to achieve With the high-precision motion platform system andhigh-precision galvanometer scanner, the cutting precision is high Application : Mainly used for the cutting, grooving and marking of FPC, rigid plate and packaged PCB Applicable for the high-quality cutting of cover lay, PI, FR4, FR5 and CEM materials Applicable for the precise processing of electronic industry like mobile phone fingerprint module, camera module, Integrated chip.

เเชร์

ราคา

Specifications

Machine model	HDZ-CL4030
Control system	Scanlab galvanometer square head + control card, Windows 7
Final processing repeated positioning precision	±0.025mm
Max. processing area	300mm*300mm
Camera positioning system	5MP
Support file format	Dxf, plt and so on
Overall dimension (for reference)	1100mm1600mm1600mm
Power supply	220V, 50Hz, 6kW
Laser
Wavelength	355nm
Power	10W/15W
Min. line width	0.03mm
Fθ lens	Box：50*50mm
Cooling mode	Water cooling
2D platform
Stroke	400mm*300mm
Repeated positioning precision	±0.002mm
