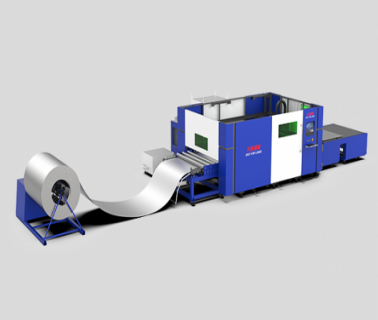

MPS-301CC 3015CC Laser Power Drum Cutting Machine

เเชร์

ราคา

Product introduction

MPS-CC coil cutting series is mainly aimed at customers who need high-efficiency laser processing of sheet metal laser coil. The products of MPS-CC coil cutting series are composed of CNC laser cutting machine, professional material rack, leveling conveyor, full enclosure sheet metal protection and other parts. It can be widely used in cutting sheet metal coil.

Product features:

1. Gantry adopts the whole casting structure of high strengthen aluminum alloy.The machine tool adopts many time CAE analysis for verification, combinedwith excellent heat treatment and processing technology, thus improved therigidity and stability of the equipment.

2. Adopts the imported servo motor and double drive precision gear racktransmission structure, to ensure the equipment can be operated with highspeed and high accuracy.

3. Adopts Han’s professional CNC system, which is independently developedby Han’s, the superior performance, high reliability, friendly interface, andconvenient operation of Han’s system has been achieved by 15 yearscontinuous improvement in the field of laser cutting.

4. Continuous cutting of sheet metal coils, maximizing material utilization andgreatly saving material costs.

Sample

Product parameters

machine	MPS-3015CC
laser	1000/1500/2000(optional)
Process area（length×width）	3000×1500
X/Y axis location accuracy	±0.05mm/m
X/Y axis repeat location accuracy	±0.03mm
X/Y axis max location speed	100m/min
X/Y axis max acceleration	1.0G
exchange worktable time	15S
worktable max load	500kg
Machine tool weight	约6.5T
dimension（length×width×height）	9000mm×2900mm×2000mm

Applicable industries

It is suitable for sheet metal processing, kitchen appliances, sheet metal case cabinets, lighting advertising, electrical equipment and all kinds of metal products processing industry

The range of applicable materials

The specialty is applied to cutting 0.5-2mm carbon steel plate, 0.5-2mmstainless steel plate, galvanized plate, electrolytic plate,0.5-2mm aluminumalloy, 0.5-2mm brass and red copper and other metal materials (the cuttingthickness and material related to laser)

Application
